Capacitance density cheatsheet of Skywater130 PDK

Ming Sun

Ming Sun / November 08, 2022

0 min read––– views

Cell name: SIM_cap
PDK: Skywater130
Schematic capture: Xschem
Simulator: Ngspice

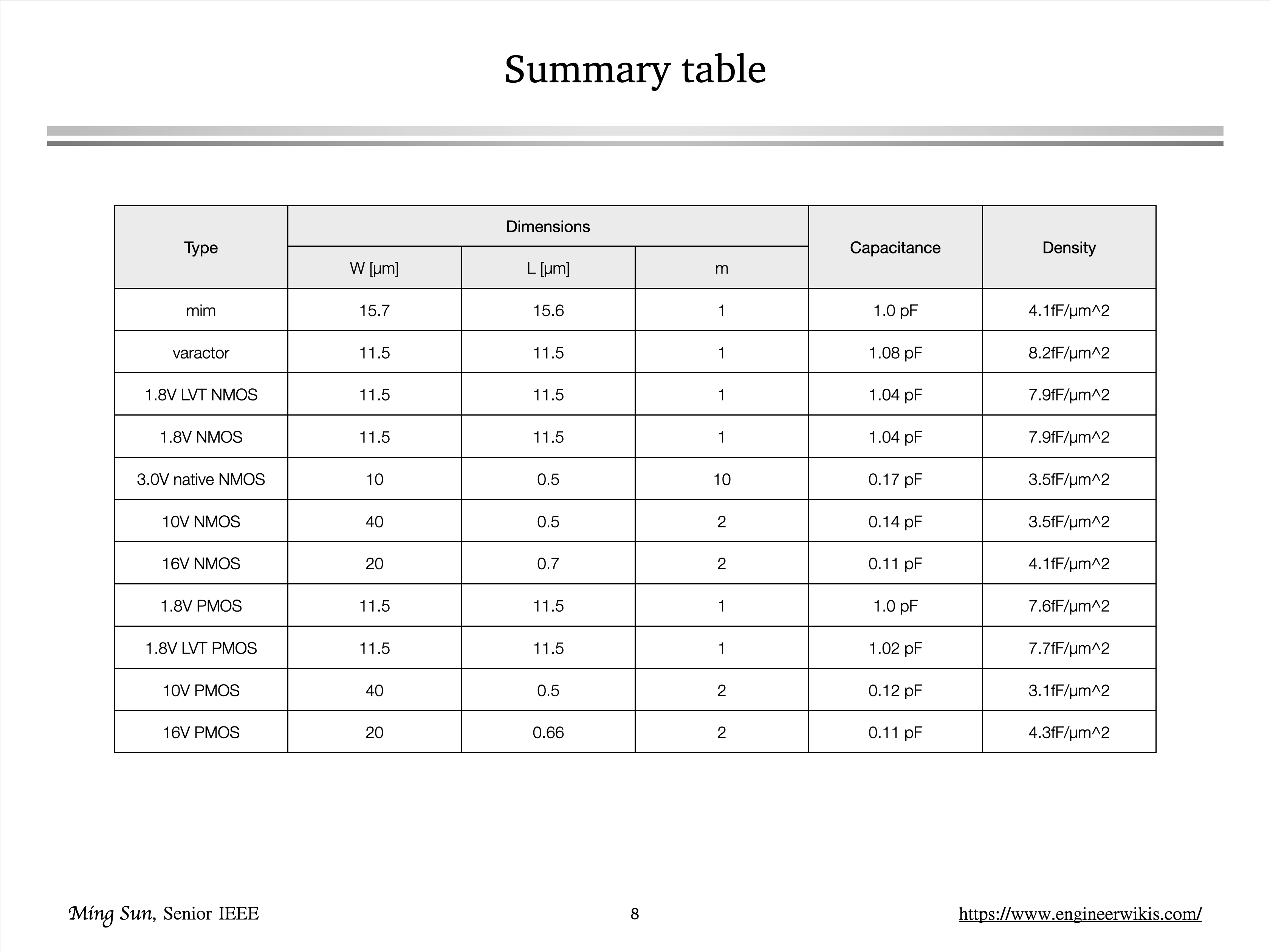

Fig. 1 shows the capacitance density summary table, which we can refer to during the design process[3].

Capacitance density summary table
Fig. 1Capacitance density summary table

References and materials

[1] SIM_cap schematic svg

[2] SIM_cap.sch - download

[3] SIM_cap.pdf - download
