Boost converter

Fig. 1 shows a simple Boost converter power stage, where a VIN is the input voltage and VOUT is the output voltage of the Boost converter[2].

Boost converter block diagram
Fig. 1Boost converter block diagram[1-2]

During the light load condition, the converter will automatically enter into the DCM (discontinuous mode) due to the diode D1. The waveform is as shown in Fig. 2.

Asynchronous Boost converter VSW and inductor current waveform
Fig. 2Asynchronous Boost converter VSW and inductor current waveform[1]

Now let us calculate the boundary condition between CCM and DCM. In other words, D3=0. The Matlab script is as shown below:

boundary.m
clc; clear; close all;

syms D Ts Vg V R Dp L
syms Sr Sf Ipk

eqn1 = D+Dp == 1;
eqn2 = D*Vg + Dp*(Vg-V) == 0;
eqn3 = Ipk == D*Ts*Vg/L;
eqn4 = 1/2*Ipk*Dp == V/R;

results = solve(eqn1,eqn2,eqn3,eqn4,Dp,Ipk,V, R);

R = simplify(results.R)

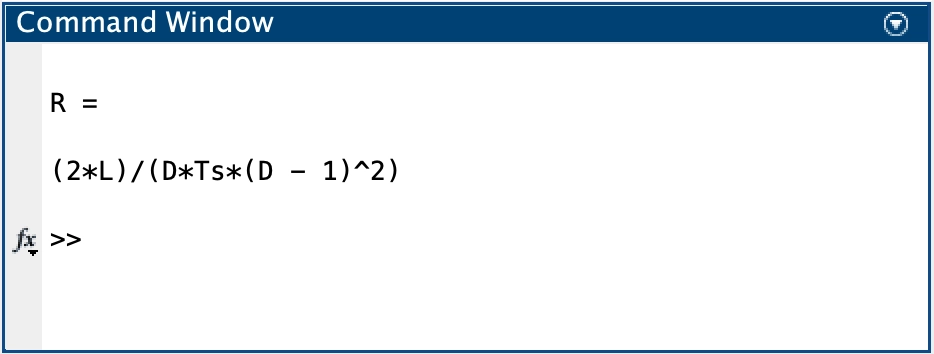

The Matlab derived result is as shown in Fig. 3.

Boundary condition between CCM and DCM for Boost converter
Fig. 3Boundary condition between CCM and DCM for Boost converter

From Fig. 3, we have:

`R_(bound)=(2L)/(DD^('2)T_S)`
(1)

Basically when the load impedance of the Boost converter is greater than Rbound, the converter will enter into DCM operation.

Now, let us derive the conversion ratio M for Boost converter. The Matlab script is as shown below.

boost_dcm.m
clc; clear; close all;

syms D Ts Vg V R D2 D3 Dp L
syms Sr Sf Ipk M

eqn1 = D+D2+D3 == 1;
eqn2 = D*Vg + D2*(Vg-V) == 0;
eqn3 = Ipk == D*Ts*Vg/L;
eqn4 = 1/2*D2*Ipk == V/R;
eqn5 = M == V/Vg;

results = solve(eqn1,eqn2,eqn3,eqn4,eqn5,D2,D3,Ipk,V,M);

M = simplify(results.M)

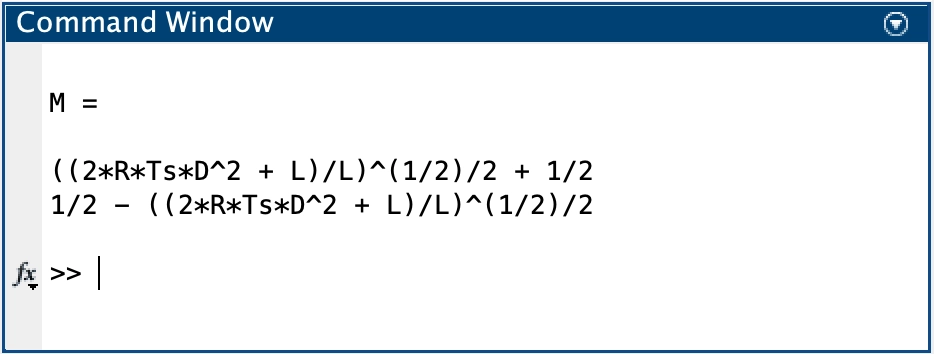

The Matlab derived result is as shown in Fig. 4.

DCM conversion ratio derivation for Boost converter
Fig. 4DCM conversion ratio derivation for Boost converter

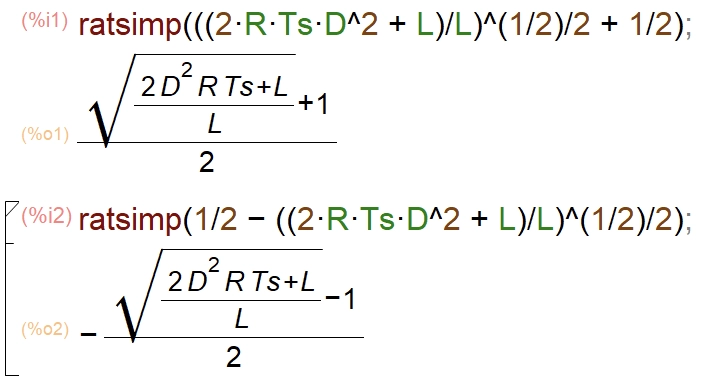

We see there are two derived results from Matlab. We need to figure out which equation is the correct answer. The wxMaxima derived result is as shown in Fig. 5.

DCM conversion ratio simplified results from wxMaxima
Fig. 5DCM conversion ratio simplified results from wxMaxima

Notice that one of the equations always give a conversion value less than 0.5, which is not correct. Therefore, we can ignore that equation and the converter ratio can be written as:

`M = (sqrt(1+(2RD^2T_S)/L)+1)/2`
(2)

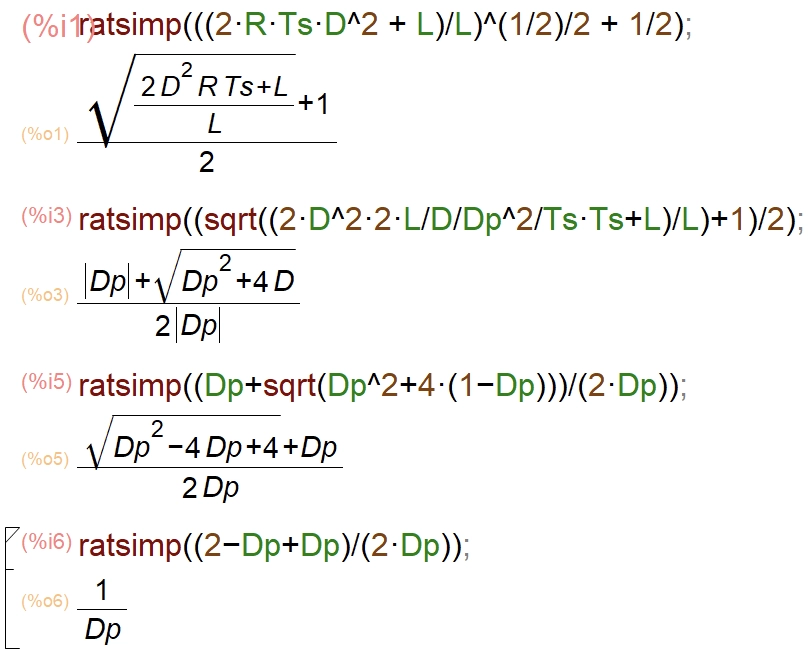

Eq. 2 shows the conversion ratio in DCM. Ideally when the load impedance is at Rbound, Eq. 2 should be equal to the CCM conversion ratio 1/D'. To verify, the wxMaxima is used to prove this assumption as shown in Fig. 6.

DCM conversion ratio simplification at DCM/CCM boundary condition using wxMaxima
Fig. 6DCM conversion ratio simplification at DCM/CCM boundary condition using wxMaxima

From Fig. 6, we can see that Eq. 2 becomes to the duty cycle 1/D' at the boundary condition, which is as we expected.

Next, let us further simplify Eq. 2.

`M = (sqrt(1+(2RD^2T_S)/L)+1)/2 = (1+sqrt(1+(4D^2)/((2L)/(RT_S))))/2`
(3)

Therefore, we have:

`M = (1+sqrt(1+4D^2text(/)K))/2 `
(4)

Where,

`K = (2L)/(RT_S)`
(5)

Looking at Eq. 1, we know that Eq. 4~5 is only valid when Boost is in DCM. Therefore, we have:

`R ≥ R_(bound)=(2L)/(DD^('2)T_S)`
(6)

In other words,

`K=(2L)/(RT_S) ≤ DD^('2)=K_{crit}`
(7)

Conversion ratio plot

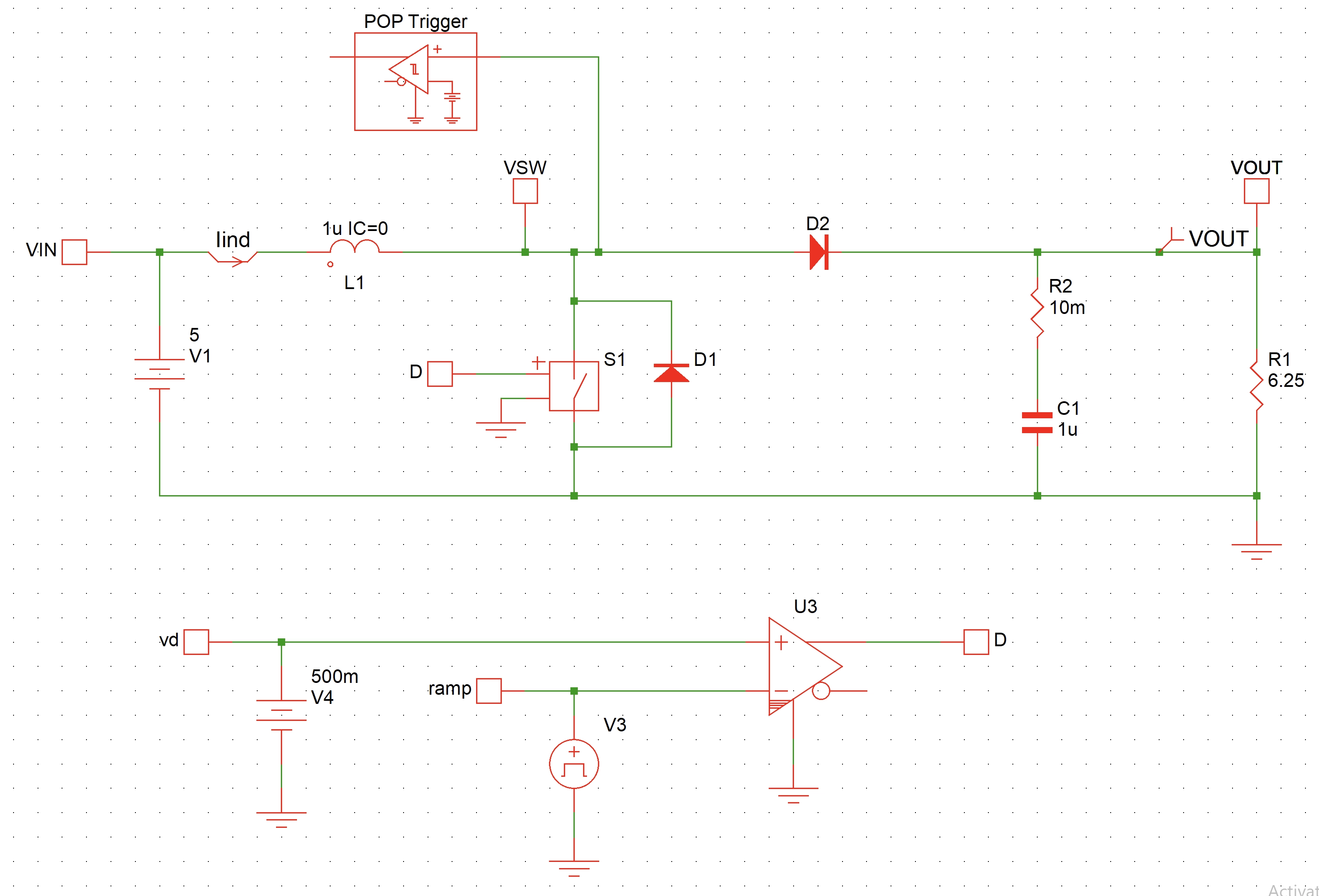

To verify the above Math derivation, the asynchronous Boost converter test bench in Simplis is as shown in Fig. 7.

Asynchronous Boost converter test bench in Simplis
Fig. 7Asynchronous Boost converter test bench in Simplis

Next, we can set the R1 to different value and compare the Simplis simulation results with Math derivation equations. The Matlab script is as shown below.

boost_verify.m
clc; clear; close all;

R = linspace(1, 10e3, 10e3+1);

Vg=5;
D=0.5;
L=1e-6;
fsw=1e6;

Ts = 1/fsw;
Dp = 1-D;

for i=1:1:length(R)
    K = 2*L/R(i)/Ts;
    M_dcm(i) = (1+sqrt(1+4*D^2/K))/2;
    M_ccm(i) = 1/Dp;
end



loglog(R, M_dcm, 'LineWidth', 2);
hold on;
loglog(R,M_ccm, 'LineWidth', 2);
grid on;
xlabel('Output impedance [Ω]');
ylabel('conversion ratio')

% simplis data
R_simplis = [1,2,3,5, 10,20,30, 100,300, 1e3,3e3, 10e3];
Vout_simplis = [9.746119, 9.8945387,9.9234313,9.9385554,...
    9.9451377,10.790558,12.499203, 20.352897,33.219558,...
    58.455916, 99.353929,179.28858];

loglog(R_simplis, Vout_simplis/Vg, 'x',"Color", "#9333EA", "LineWidth", 2, "MarkerSize",12);
legend("DCM equation", "CCM equation", "Simplis", "Location","northwest");

The comparison between Mathematics derivation and Simplis simulation results for conversion ratio is as shown in Fig. 8.

Conversion ratio comparison between Simplis and Math derivation
Fig. 8Conversion ratio comparison between Simplis and Math derivation

Conclusion - conversion ratio

Fig. 8 tells us the conversion ratio is simply the maximum between the DCM and CCM Math equation. Then we can combine the conversion ratio equation for DCM and CCM as:

`M = max[1/D^', (1+sqrt(1+4D^2text(/)K))/2]`
(9)

Where,

`K = (2L)/(RT_S)`
(10)

If,

`1/D^' > (1+sqrt(1+4D^2text(/)K))/2`
(11)

Then, the converter works in CCM. Otherwise, it works in DCM.
